Closed-loop Hall Current Sensors

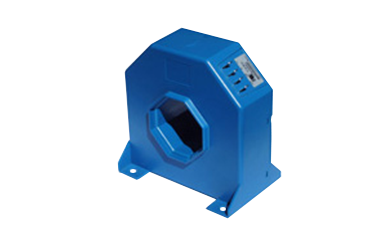

Closed-loop Hall current sensors, manufactured using the Hall magnetic compensation principle, are used to measure 2000A DC, AC and pulse currents. The primary side input current IN is electrically isolated from the secondary side output current IM and follows the input current linearly in a true manner.
Key Features
Application area

Various power supplies, welding machines, industrial automation control, electrical drives, frequency converters, motor servo, power systems, railroad systems, etc.

Consult us +86-010-61590939
  • Technical Specifications
  • Application Cases
技术规格
Closed-loop Hall Current Sensors
Model numberRated currentOutput currentAccuracySupply voltageWindow dimensions
IN（A）IM（mA）X（%）Vc（V）mm
CHB-2000SJ2000400±0.5%±15~24φ60
CHB-2000TJ2000400±0.5%±15~24Bus bar
parameters
Manufacturing principlesHall magnetic compensation principle
Rated current2,000A（DC、AC、Pulse current）
Output current ratio

1：5000

The waveform of the output current on the secondary side is the same as that of

the measured current on the primary side.

Measuring frequencyDC~100KHz
Response time<1μS
Linearity<0.1%
Power consumption30mA+IM（Output current）
Insulation voltageBetween the primary and secondary circuits：6KV valid value/50Hz/1 minute
Operating temperature-25℃~+85℃
Installation methodScrew-fixed mounting
Application areasVarious power supplies, welding machines, industrial automation control, electrical drives, frequency converters, motor servo, power systems, railroad systems, etc.
