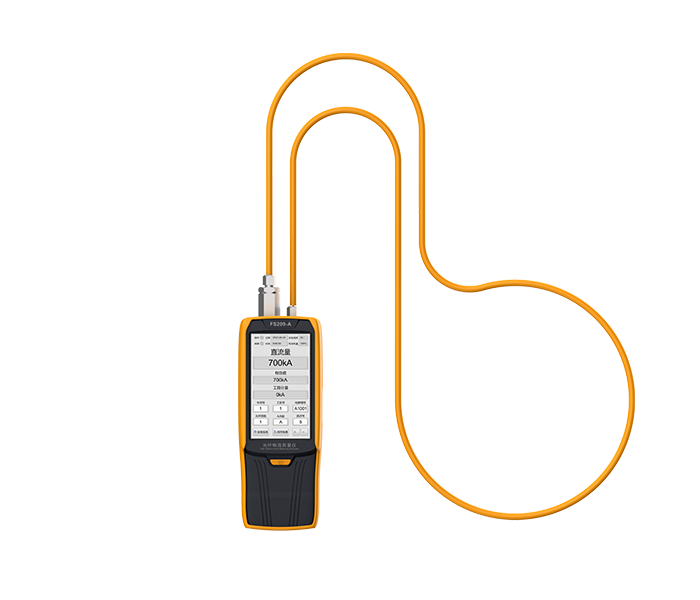

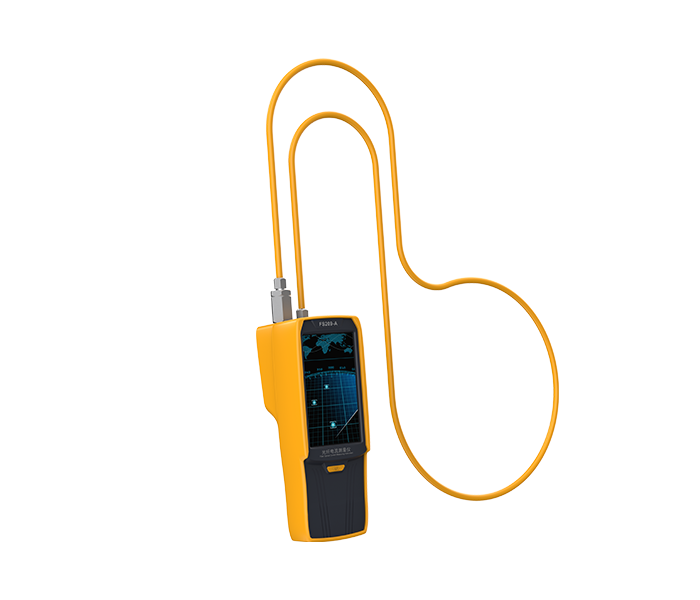

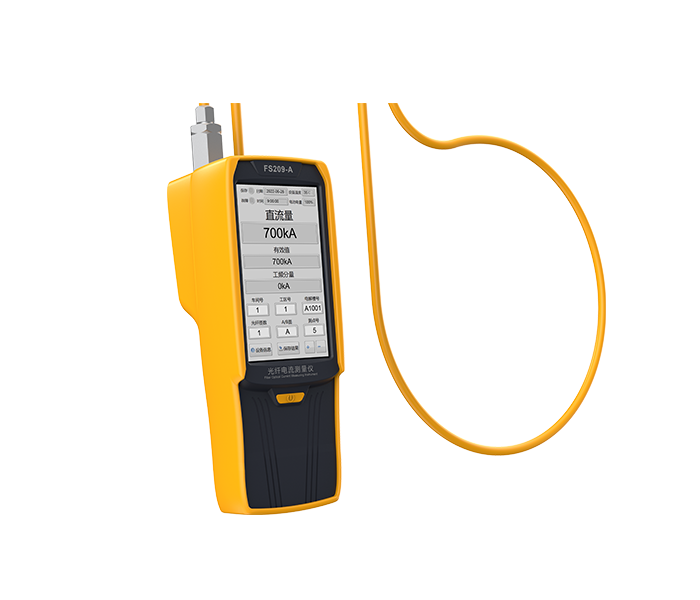

FS209 Hand-held Fiber Optic Current Meter
The FS209 hand-held fiber optic current meter is an ultraportable and very flexible fiber optic current measurement system. The instrument utilizes world-class knowledge of the integrated technology for optoelectronics to offer unprecedented miniaturization and portability. FS209’s flexible sensing cable can be wrapped around any current-carrying busbar to achieve quick and accurate current measurement.
Key Features
Resistant to stray magnetic field interference, portable measurement, flexible sensing ring, human-computer interaction
Application area

Electrolyzer cathode steel rods and anode guide rods status monitoring, fault diagnosis

Rectifier cabinet output current

Generator set output characteristic test

Magnetic particle flaw detector output current calibration

Welding machine output current calibration

Consult us +86-010-61590939
  • Technical Specifications

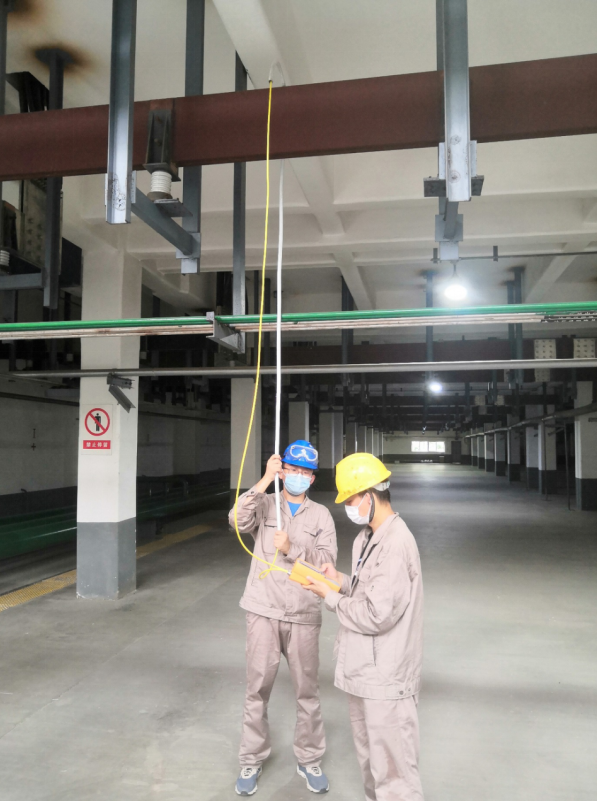

  • Application Cases
技术规格


Technical indicators
Rated current(Ir)10/20/50/100/200/400/600/800kA
Maximum range 120% Ir
Measuring accuracy≤0.5%
Linearity≤0.2%
Bandwidth (analog output)  0~3kHz
Response time (analog output)≤300us
Integration time (numerical display) 1~10s (optional)
Sensing cable length 3m/6m/9m/12m
Sensing cable diameter 8mm
Sensing fiber optic cable withstand voltage 2kV
Minimum bending radius of sensing fiber optic cable 115mm
Analog output (rated) ±5V/±10V
Data interfaceUSB-C
Number of data records 10000
Sensing ring operating temperature -10°C～+85°C
Host operating temperature -10°C～+45℃
Protection gradeIP50
Battery capacity16500mAh 3.6V 60wh
Standby time≥ 8 hours
Charging interfaceUSB-C
Host size225mm×86mm×85mm
Weight1kg
Screen size5inch（110mm×62mm）
