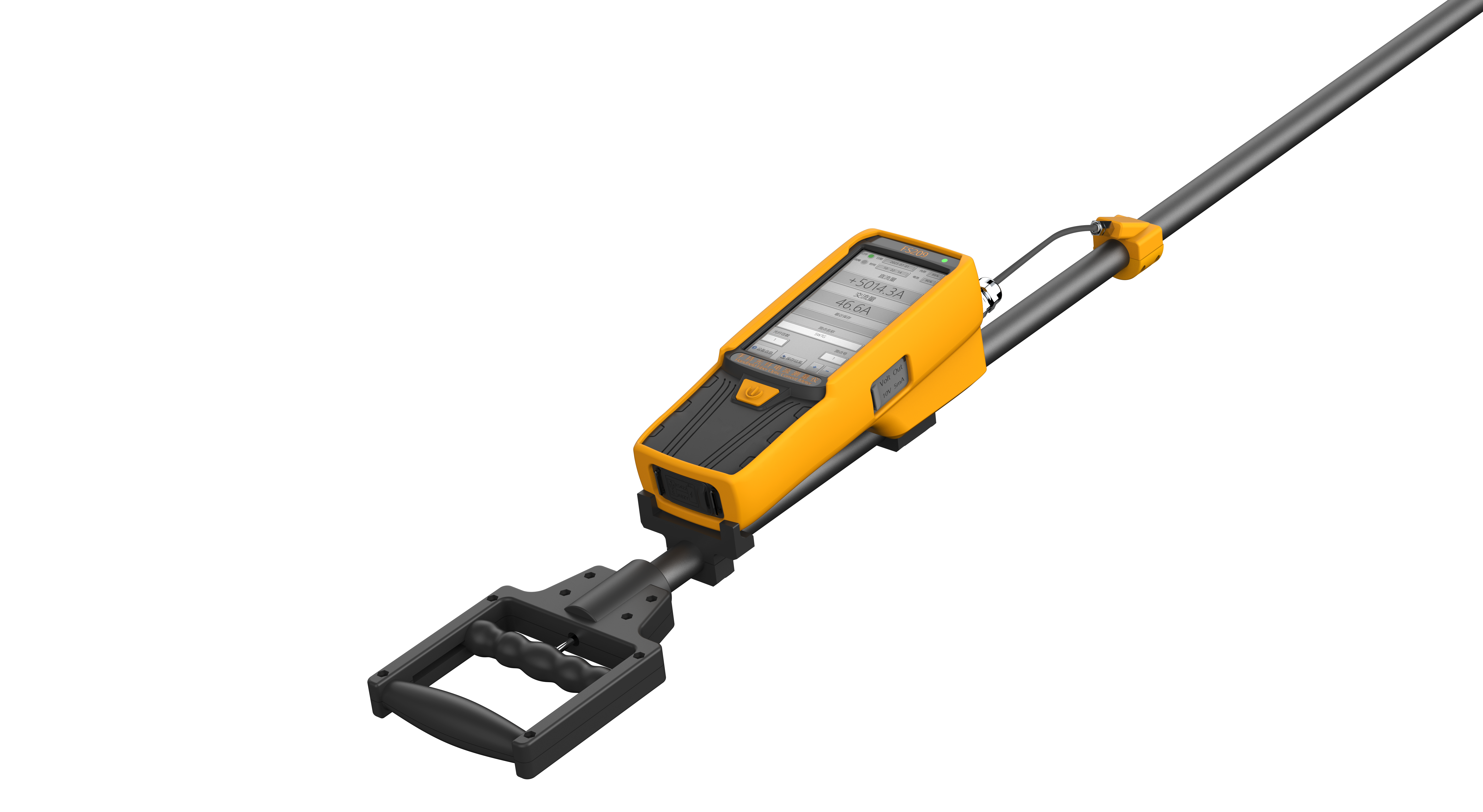

FS210 Clamp-on Fiber Optic Current Meter

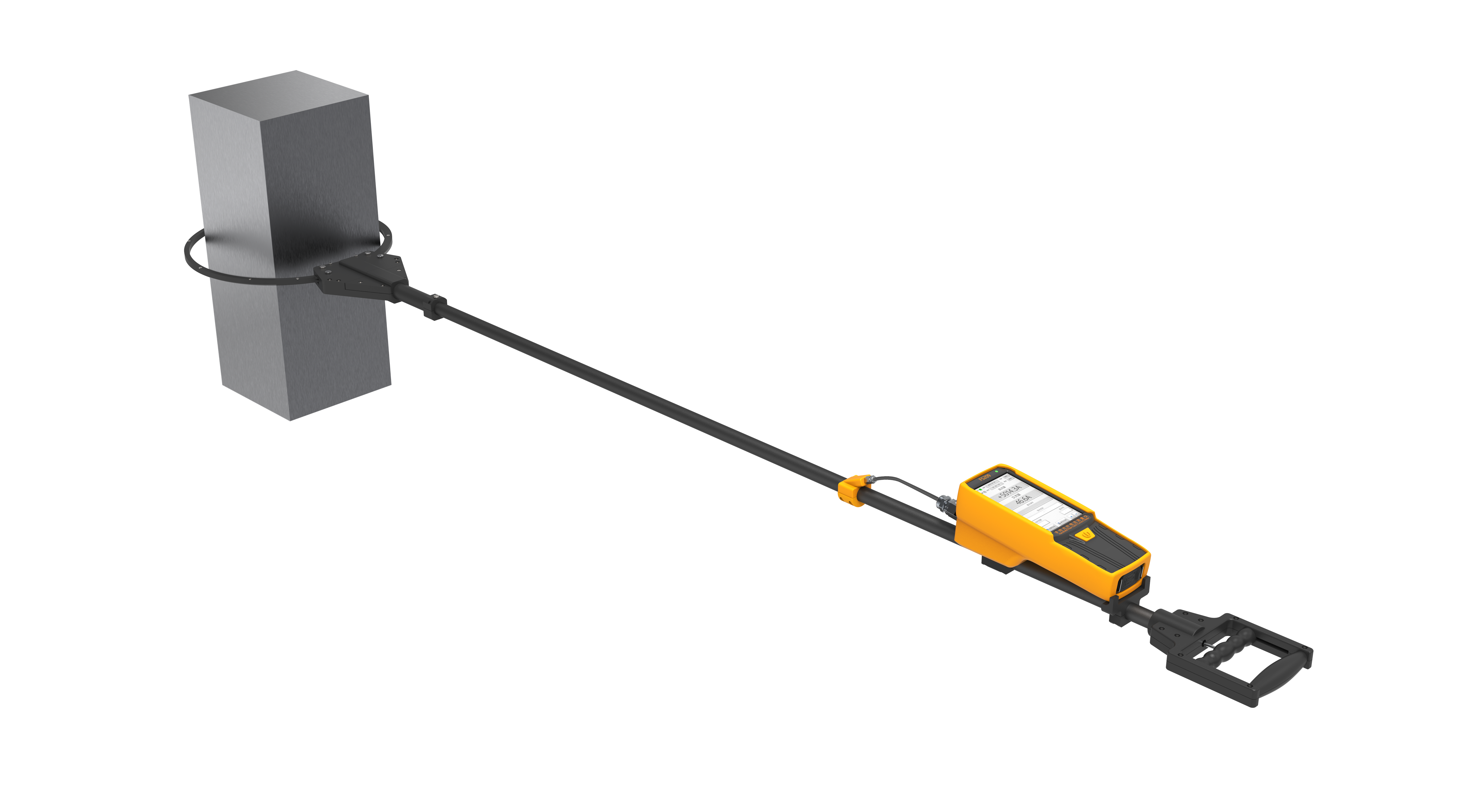

The FS210 clamp-on fiber optic current meter utilizes Ampere's Law and the Faraday magneto-optical effect. This advanced instrument integrates optoelectronics technology with a sensing fiber incorporated into a clamp mechanism, allowing for quick and accurate measurement of current distribution in electrolytic cells.
Key Features
Anti-Spurious Magnetic Interference, Fast Measurement, Human-Machine Interaction, Protective Design for Harsh Environments
Application area
Electrolyzer anode and cathode current measurement
- Technical Specifications
- Application Cases
技术规格
| Technical indicators | |
| Rated current(Ir) | 20/40kA |
| Maximum range | 120% Ir |
| Measurement accuracy | 1%FS |
| Data refresh rate | 3Hz |
| Smoothing time | 1~10s |
| Output mode | |
| Data interface | USB-C |
| Number of data records | 10000 |
| Environmental conditions | |
| Measuring head operating temperature | -10°C～+85°C |
| Main unit operating temperature | -10°C～+45℃ |
| Storage temperature | -40°C～+70°C |
| Protection grade | IP50 |
| Power supply | |
| Power supply mode | Battery |
| Battery capacity | 16500mAh 3.6V 60wh |
| Standby time | ≥8h |
| Charging power | AC 110/220V 50Hz/60Hz |
| Charging interface | USB-C |
| Physical Size | |
| Main unit (W×H×D) | 225mm×86mm×85mm |
| Screen size | 5inch |
| Weight | ≤2kg |
Operation lever length (L) | 1m/1.2m/1.5m/1.8m |
| Clamp opening type | C1 |

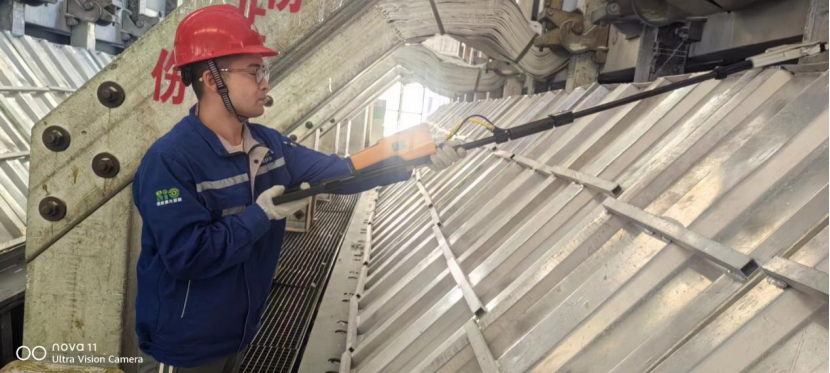

应用案例
