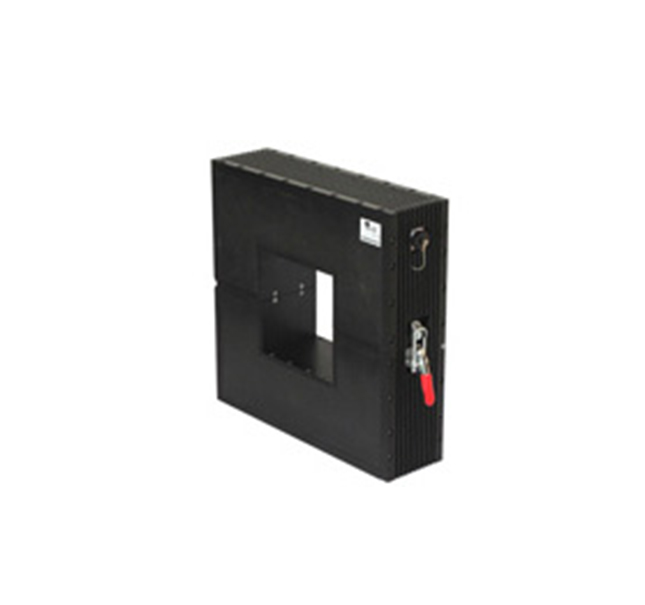

Closed-loop Hall Current Sensors
Closed-loop Hall current sensors, manufactured using the Hall magnetic compensation principle, are used to measure 2KA...6KA DC, AC and pulse currents. The primary input current IM is electrically isolated from the secondary output current IM and follows the input current linearly in a true manner.
Key Features
Application area

Various power supplies, industrial automation control, electric power systems, rectification systems, nuclear physics research and other industrial and scientific research technology fields.

Consult us +86-010-61590939
  • Technical Specifications
  • Application Cases
技术规格
Closed-loop Hall Current Sensors
Model numberRated currentOutput currentAccuracySupply voltageWindow dimensions
IN（A）IM（mA）X（%）Vc（V）mm
CHB-2KB2000
400

±0.4%

±24%

105x105
CHB-3KB3000600


CHB-4KB4000800

±0.4%

±24

105x105
CHB-5KB50001000


CHB-6KB60001200


parameters
Manufacturing principlesHall magnetic compensation principle
Rated current2,000A…6,000A（DC、AC、Pulse current）
Output current ratio

1：5000

The waveform of the output current on the secondary side is the same as that of

the measured current on the primary side.

Measuring frequencyDC~20KHz

Response time<1μS

Linearity<0.1%
Supply voltage±24V（±5%）
Power consumption90mA+IM（Output current）
Insulation voltageBetween the primary and secondary circuits：6KV valid value/50Hz/1 minute
Operating temperature-25℃~+70℃

Installation methodScrew-fixed mounting
Application areasVarious power supplies, industrial automation control, electric power systems, rectification systems, nuclear physics research and other industrial and scientific research technology fields.
