Closed-loop Hall Current Sens

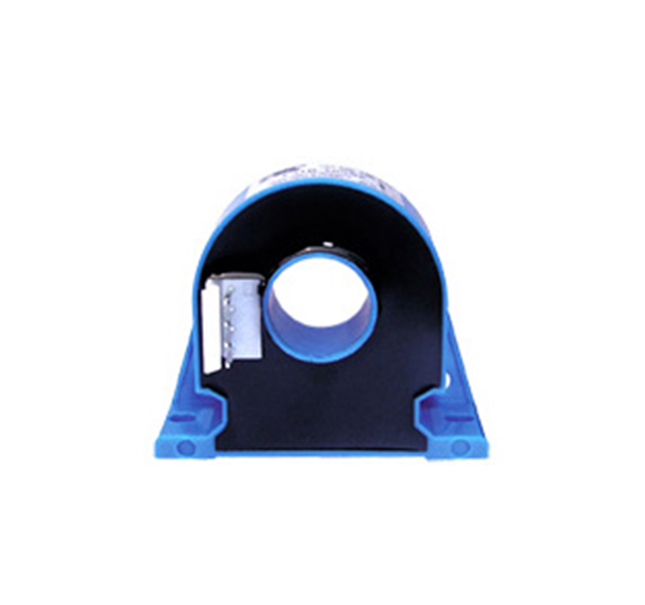

Closed- loop Hall current sensors, manufactured using the Hall magnetic compensation principle, are used to measure 50A~300A DC, AC and pulse currents. The primary side input current IM is electrically isolated from the secondary side output current IM and follows the input current linearly in a true manner.
Key Features
Application area

Various power supplies, welding machines, industrial automation control, electrical drives, frequency converters, motor servo, power systems, railroad systems, etc.

Consult us +86-010-61590939
  • Technical Specifications
  • Application Cases
技术规格
Closed-loop Hall Current Sensors
Model numberRated currentOutput currentAccuracySupply voltageWindow dimensions
IN（A）IM（mA）X（%）Vc（V）mm
CHB-50SF5050±1.0%±12~18φ20
CHB-100SF100100±1.0%

CHB-200SF200100±0.8%

CHB-300SF300150±0.8%

CHB-50TF5050±1.0%±12~18Bus bar
CHB-100TF100100±1.0%

CHB-200TF200100±0.8%

CHB-300TF300150±0.8%

parameters
Manufacturing principlesHall magnetic compensation principle
Rated current50~300A（DC、AC、Pulse current）
Output current ratio

1：1000（50A~100A）；1：2000（200A~300A）

The waveform of the output current on the secondary side is the same as that of

the measured current on the primary side.

Measuring frequencyDC~100KHz
Response time<1μS
Linearity<0.1%
Supply voltage±12~18V（±5%）
Power consumption10mA+IM（Output current）
Insulation voltageBetween the primary and secondary circuits：3KV valid value/50Hz/1 minute
Operating temperature -25℃~+85℃
Installation methodScrew-fixed mounting
Application areasVarious power supplies, welding machines, industrial automation control, electrical drives, frequency converters, motor servo, power systems, railroad systems, etc.
SectorIndustry
