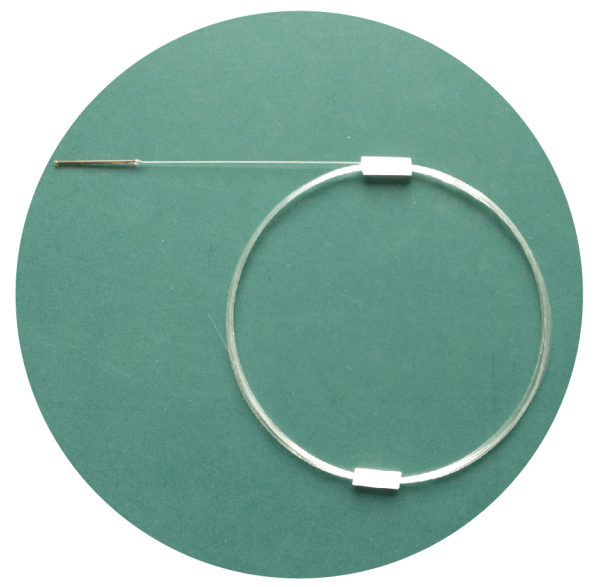

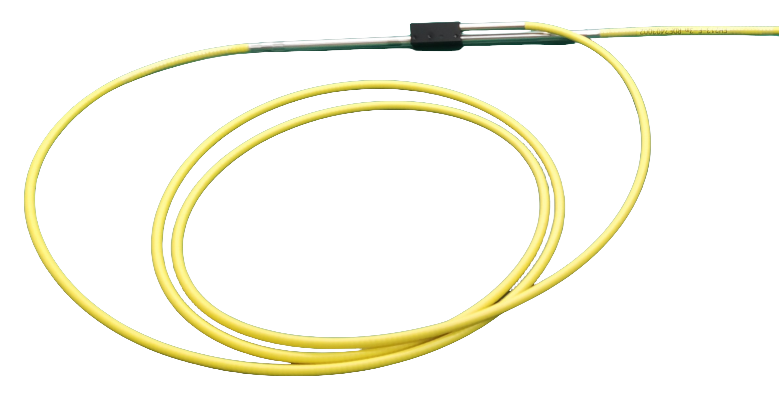

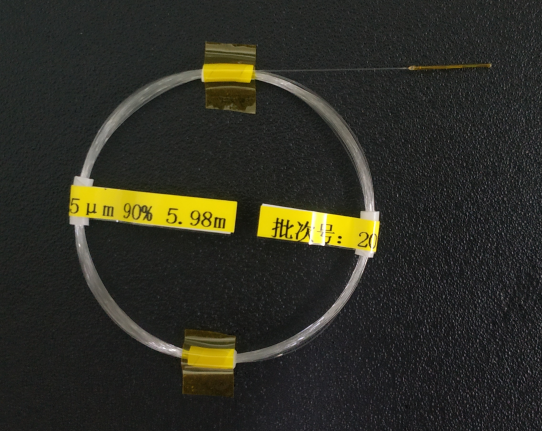

Fiber Optic Mirror
The fiber-optic mirrors are passive devices for reflecting light wave signals in optical paths. They are precision milled and vacuum-coated with the advantages of high reflectivity, wide wavelength range and high stability.
Key Features
high reflectivity, wide wavelength range, small package structure, high reliability
Application area
fiber optic light source, fiber optic sensing, fiber optic communications
- Technical Specifications
- Application Cases
技术规格
| Items | Parameters |
| Operating Wavelength | 1310nm±20nm |
| Reflectivity | ≥85％ |
| Coating Type | Dielectric Film |
| Withstand Tension | ≤7N |
Full Temperature Ratio Error @ Fiber Optic Current Sensor | ≤0.3％ |
| Pigtail Type | SPUN-HBF，High birefringence spin optical fiber,customizable |
| Pigtail Cladding Diameter | 80μm or 125μm |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -55℃~+85℃ |
