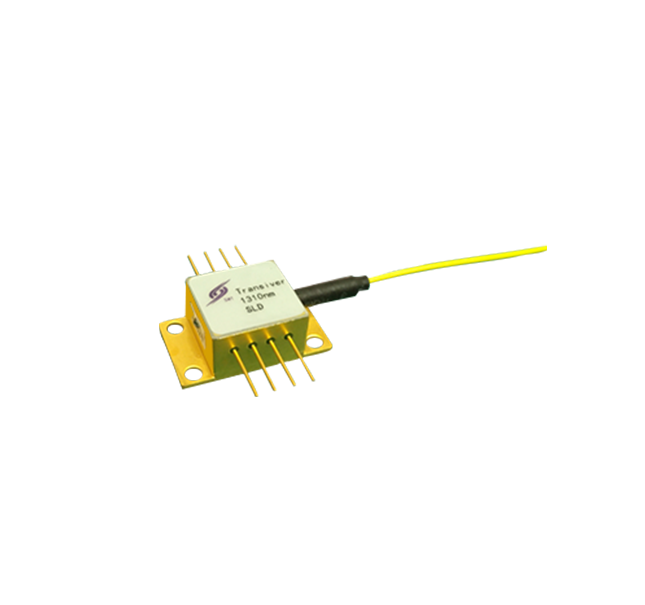

SLD Light Source Components
The SLD (Super Luminescent Diode) light source component is a self-emitting radiation of one-way light amplification semiconductor light source, using external circuitry through the monitoring of the built-in thermistor to achieve stable control of the chip temperature, to ensure the long-term stability of the work of the SLD, with a high output optical power, wide spectral width, short coherence and high reliability and other advantages.
Key Features
high output optical power, wide spectral width, short coherence, high reliability
Application area

fiber optic communication, fiber optic sensing, optical coherent imaging

  • Technical Specifications
  • Application Cases
技术规格
Items
Parameters
Central Wavelength1310nm±10nm
Output Optical Power@100mA0.5mW~1.6mW
3dB Spectral Width≥40nm
Spectral Ripple≤0.2dB

Polarization Extinction Ratio

Low-bias Output≤1.2dB
High-bias Output≥12.0dB
Thermistor10kΩ
TEC Operating Current≤1200mA
TEC Operating Voltage≤3.2V
The Power Change Rate of Full Temperature Output Light≤6%
Pigtail TypeSMF/PMF
Pigtail Cladding Diameter80μm or 125μm
Operating Temperature-40℃~ +85℃
Storage Temperature-55℃~ +85℃


应用案例

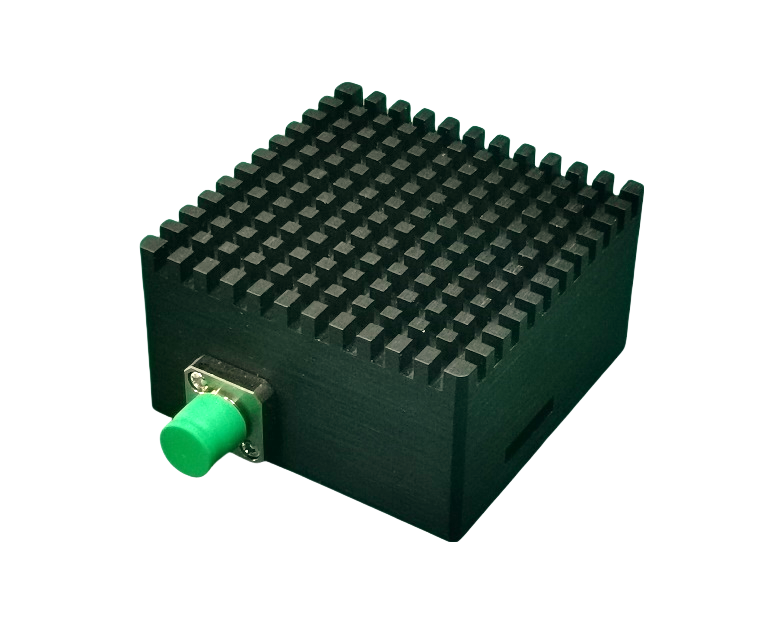

图片 9_美图抠图20250320
