Single/multi-channel Optical Power Meter
The single / multi-channel optical power meter has a built-in large-sensitive photoelectric detector and a high-precision photoelectric detection unit, which achieves an optical power measurement accuracy better than 0.2dB in a 7OdB dynamic range. It can realize automatic acquisition of optical power in multiple channels with a host computer control software. The device can collect temperature at the same time when select the temperature acquisition module, which is convenient for the automatic test system of optical devices.
Key Features
large measurement dynamic range, high measurement accuracy], can be automatically collected.
Application area

 laser coupling, long-term stability test of devices, laboratory and scientific research.

  • Technical Specifications
  • Application Cases
技术规格
Parametric index
Referential data
Number Of Channels 1~24
Operating Wavelength850nm~1620nm
Measuring Range -60dBm~+10dBm
Dynamic Range 70dB
Uncertainty<5%
Channel Consistency ≤0.1dB (available software correction )
Resolution0.001dB
Sampling Time 50ms/100ms/200ms/500ms
Display UnitdBm/dB/mW
Operating Temperature0℃~+50℃
Storage Temperature -20℃~+70℃
Power SupplyAC 220V
Fiber Interface FC or SC
communication Interface USB or LAN
Overall Dimension

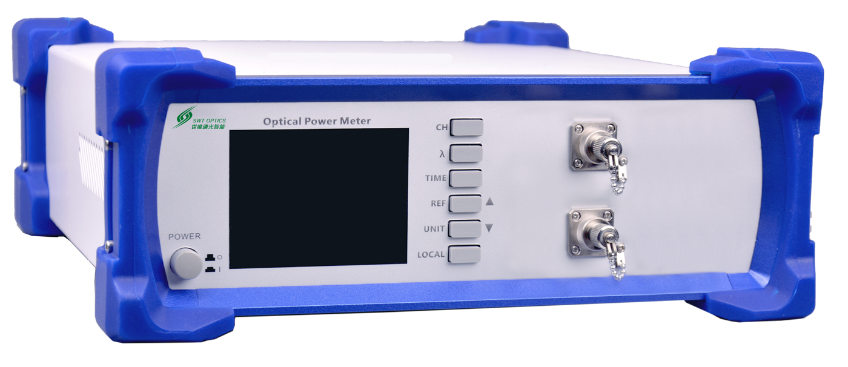

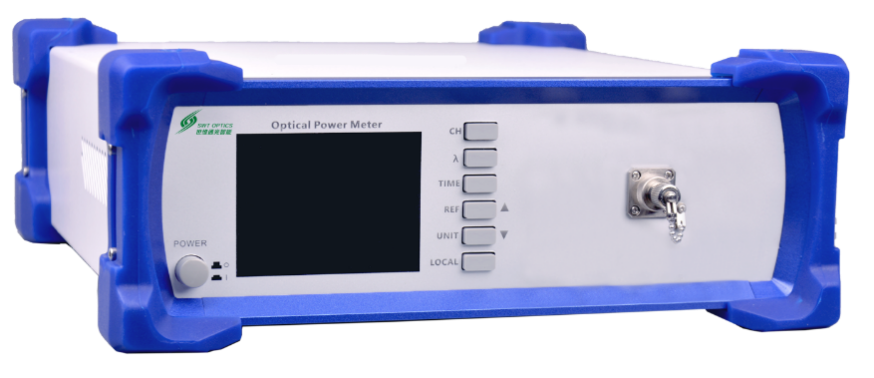

single/dual-channel: 360mm X 300mm X 110mm (L x W x H)

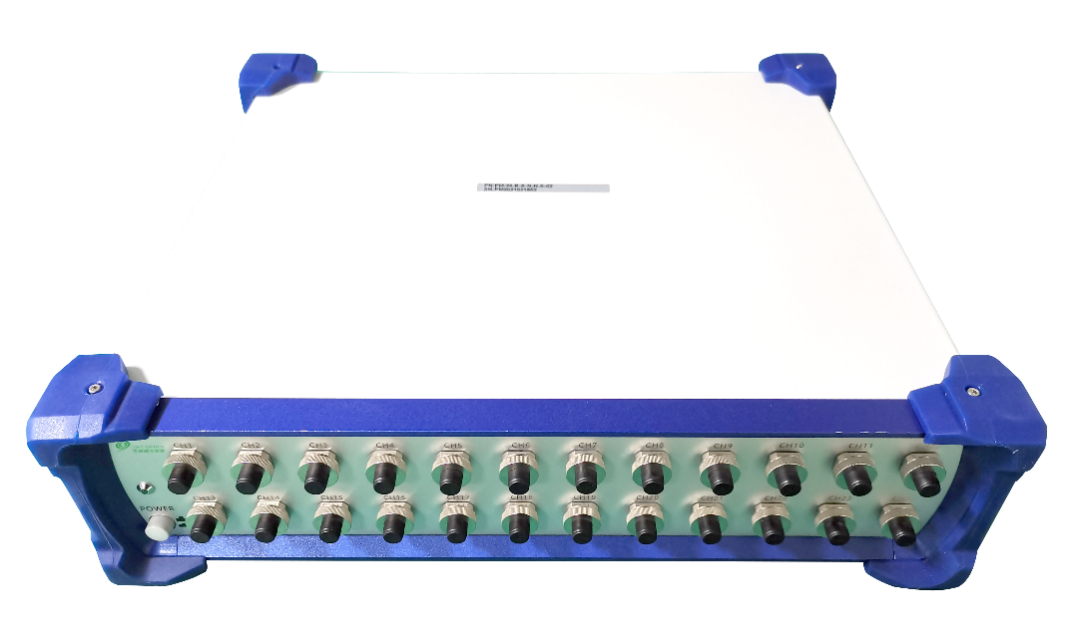

multi-channel: 425mm X 400mm X 110mm (L x W x H)

Temperature acquisition module ( optional )
Temperature Resolution0.01℃
Temperature Measurement Range-55℃~+100℃
Temperature Measurement Accuracy±0.3℃

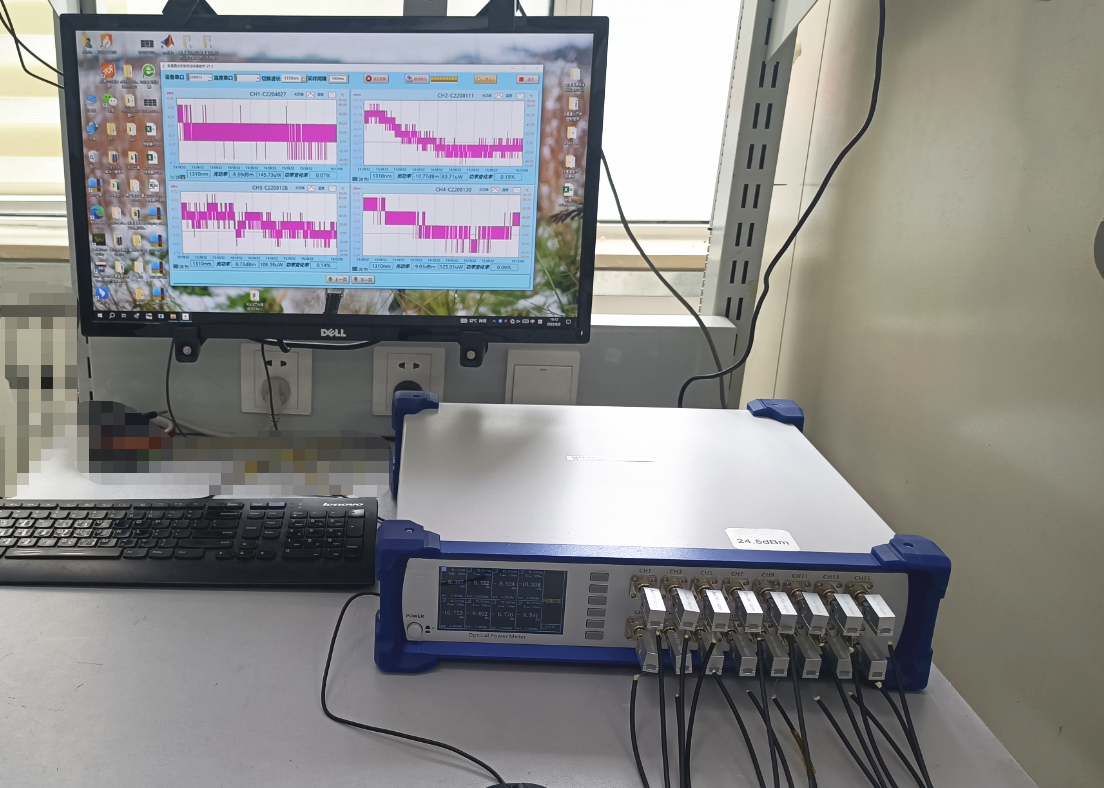

应用案例
