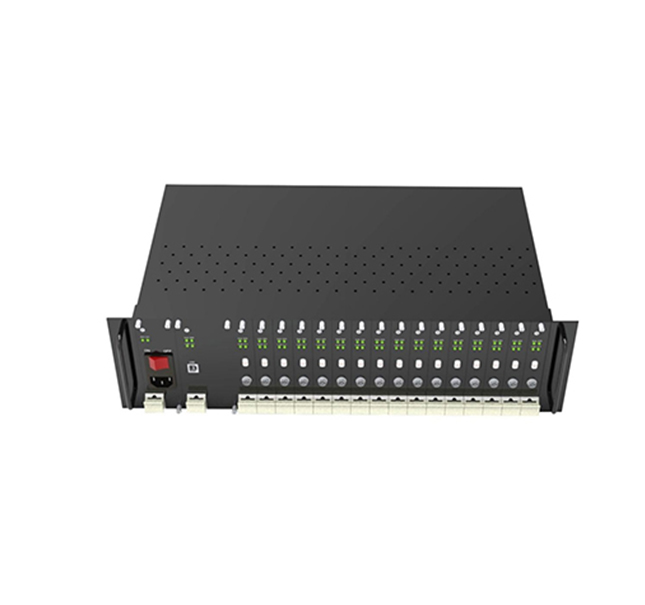

Multi-channel Light Source Driver
The multi-channel light source driver adopts high-precision constant current source technology and high-precision temperature control technology. It can drive 16 light source devices at the same time with the light source test tooling. Through the host computer software, it can realize the independent parameter setting and parameter reading of each device; equipped with temperature acquisition module, it can collect temperature at the same time. It is convenient to set up the automatic test system of the light source and suitable for the aging test and performance test of the semiconductor light source.
Key Features
high stability of output light source driving power, precise temperature control of the light source core, the light source drive current is continuously adjustable, has the drive current limiting function, with host computer software, Common platform wi
Application area

driving and testing of light source devices.

  • Technical Specifications

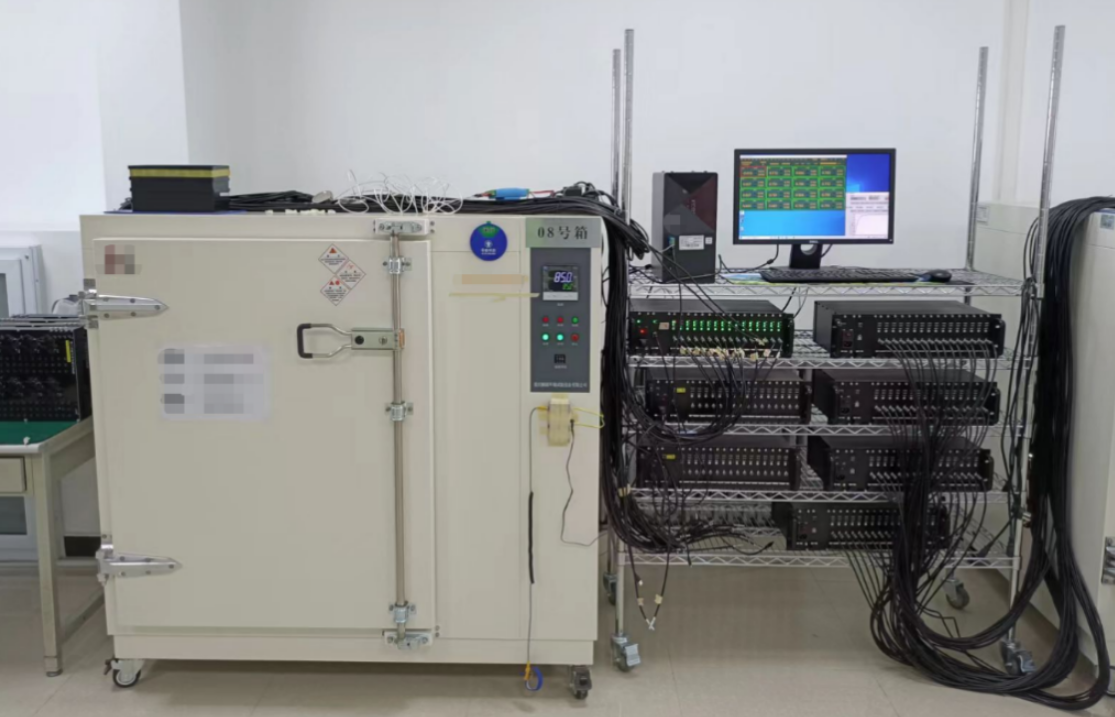

  • Application Cases
技术规格
ProjectsParameters
Number Field Of Channels1~16
Output Light Source Drive Current ≤450mA
Output Light Source Drive Current Temperature Coefficient ≤0.002%/°C
Output Light Source Drive Current Time Stability ≤0.02%@1h


ProjectsParameters
TEC Voltage ≤3A
Temperature Coefficient Of TEC ≤4V
Temperature Control ≤0.005℃/°C
TEC Temperature Control Time Stability≤0.01℃@1h
Light Source Protection FunctionDrive current limiting function, over temperature protection function, abnormal alarm function
Operating Temperature -5℃~+55℃
Storage Temperature -20℃~+70℃
Power SupplyAC 220V
Communication InterfaceUSB
Overall Dimension480mmx250mmx135mm (LxWxH )
