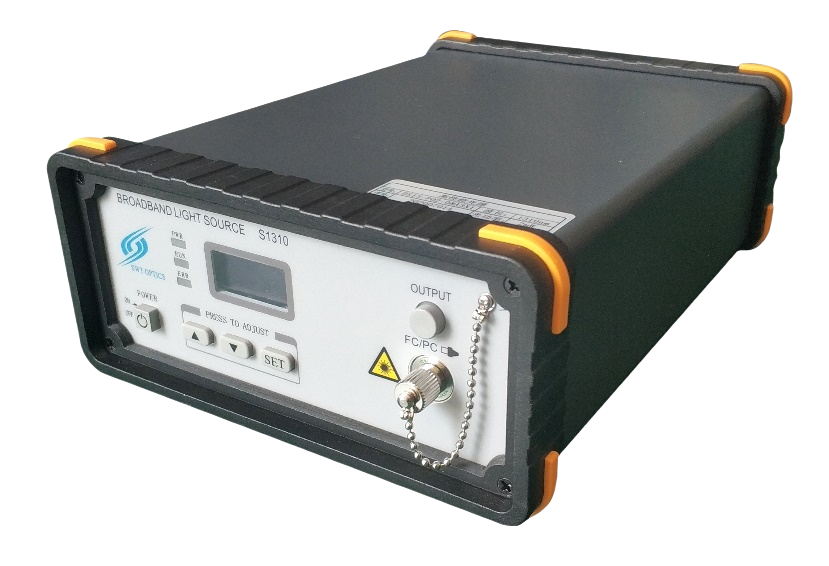

High Performance Light Source
The device is an advanced laboratory light sources, specially designed for high stability test requirements. The driving current of the light source and the Operating temperature of the tube core are controlled with high precision, and the optical power and spectral output are stable. According to the user’s specific needs, the instrument can be customized, including the type of light source (SLD or DFB laser), the output optical power range and the operating wavelength.
Key Features
excellent optical power stability, optical output power continuously adjustable, has the drive current limiting function, support RS485 communication, equipped with host computer control software.
Application area

fiber optical sensing, optical coherence tomography, optical device testing.

  • Technical Specifications
  • Application Cases
技术规格
ProjectsParameters
Center Wavelength 850nm±10nm or 1310nm±10nm or 1550nm±10nm
Output Optical Power0.5mW~10mW
3dB Spectral Width ≥35nm
Polarization Extinction Ratio ≤0.1dB
Power Stability ≤1%@8h(25℃±3℃)
Operating Temperature -5℃~+55℃
Storage Temperature-20℃~+70℃
Power Supply AC 220V
Fiber Type Single mode or polarization maintaining
Fiber Interface FC/PC (customizable )
Overall Dimension220mmx165mmx70mm (Lx W x H )
